| Brand/make | SEKISUI SPECIALTY CHEMICALS CO., LTD. (JAPAN) |
|---|---|
| Material | Special-grade PVC manufactured for ultra-pure and high-purity water applications. |
| Size | 1/2" to 12" |
| Standard | According to JIS STD |
| Joining type | Adhesive (Solvent Cement) | Socket Fusion - both available. |
| Valve Option | Oil-free valves available for UPW systems. |
| New Addition | Clean PE Pipe System - new product for UPW (Ultra-Pure Water) applications |
| Application | Semiconductor fabrication, Solar panel manufacturing, Electronic-grade water systems, Ultra-Pure Water (UPW) distribution. |

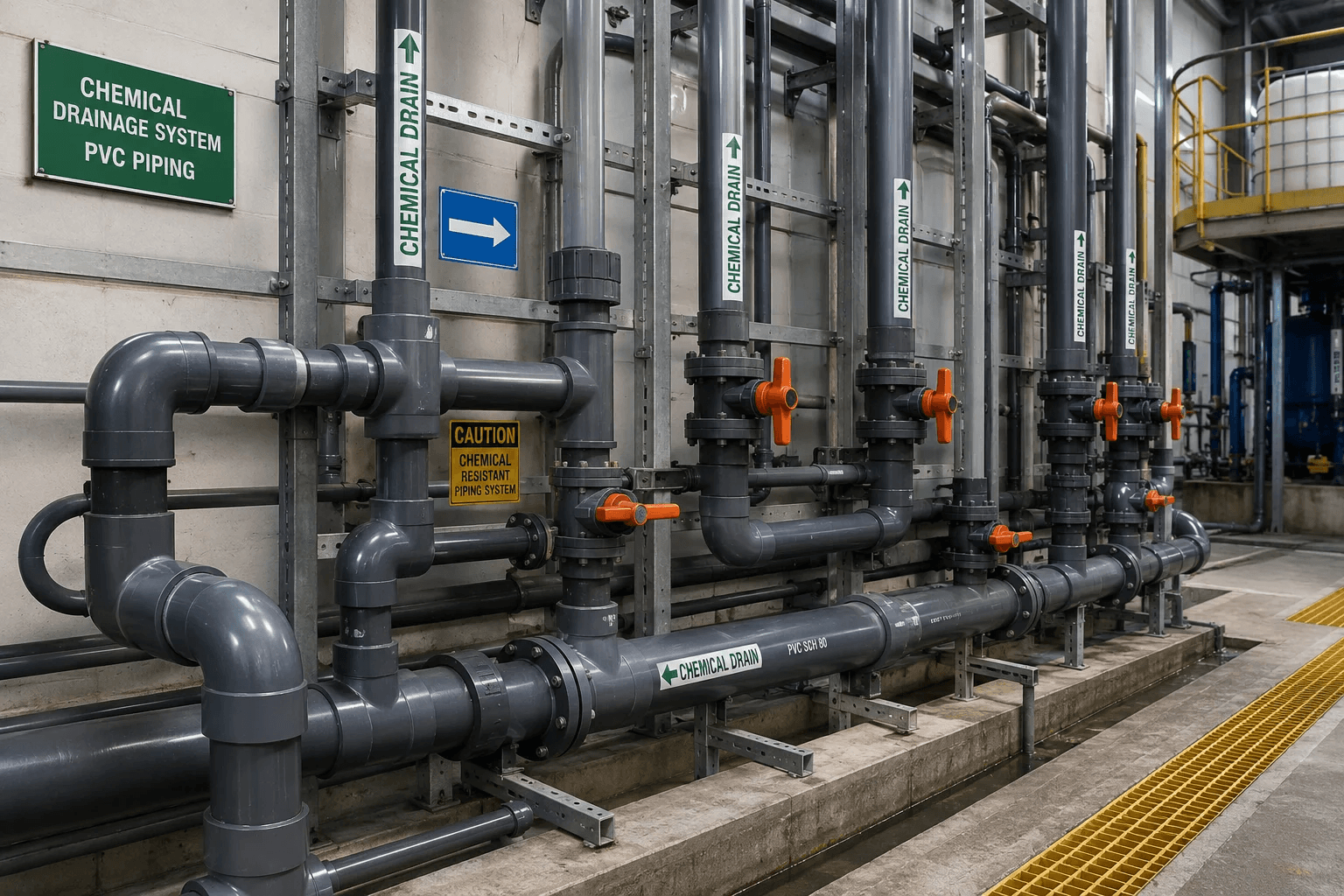

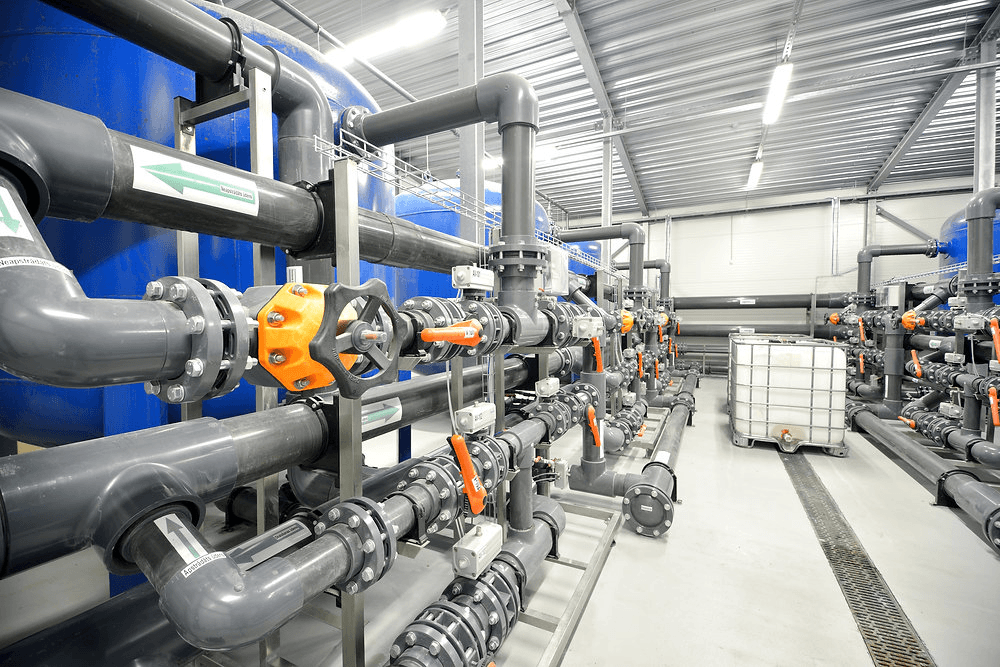

| Brand/make | SEKISUI SPECIALTY CHEMICALS CO., LTD. (JAPAN) |
|---|---|
| Material | UPVC (Unplasticized PVC) | Cell Classification: ASTM D-1784 (12454) |
| Standard | ANSI / ASTM | Pipe: ASTM D-1785 | Fittings: ASTM D-2467 / D-2464 |
| Schedule | Schedule 80 (Sch80) |
| Size | 1/2" to 16" Diameter (15A to 400A) |
| Connection Types | Socket (S x S) | Threaded (FT x FT) | Socket x Threaded (S x FT) |
| Pipe Fitting's type | Coupling, 90 Elbow, 45 Elbow, Tee, Male Adapter, Female Adapter, Cap, Union, Flange (One-piece, Van Stone, Blind), Reducers, Bushings. |
| Flange Standards | ANSI x ASTM | JIS x ASTM | ANSI Threaded. |
| NSF Certification | NSF International Standard 14 & 61 (Drinking Water System Components). |
| Color | Dark Gray |
| Application | Chemical Plant Piping, Water Distribution, Chlor-Alkali, Power Generation, Food & Beverage, Waste Water Treatment. |

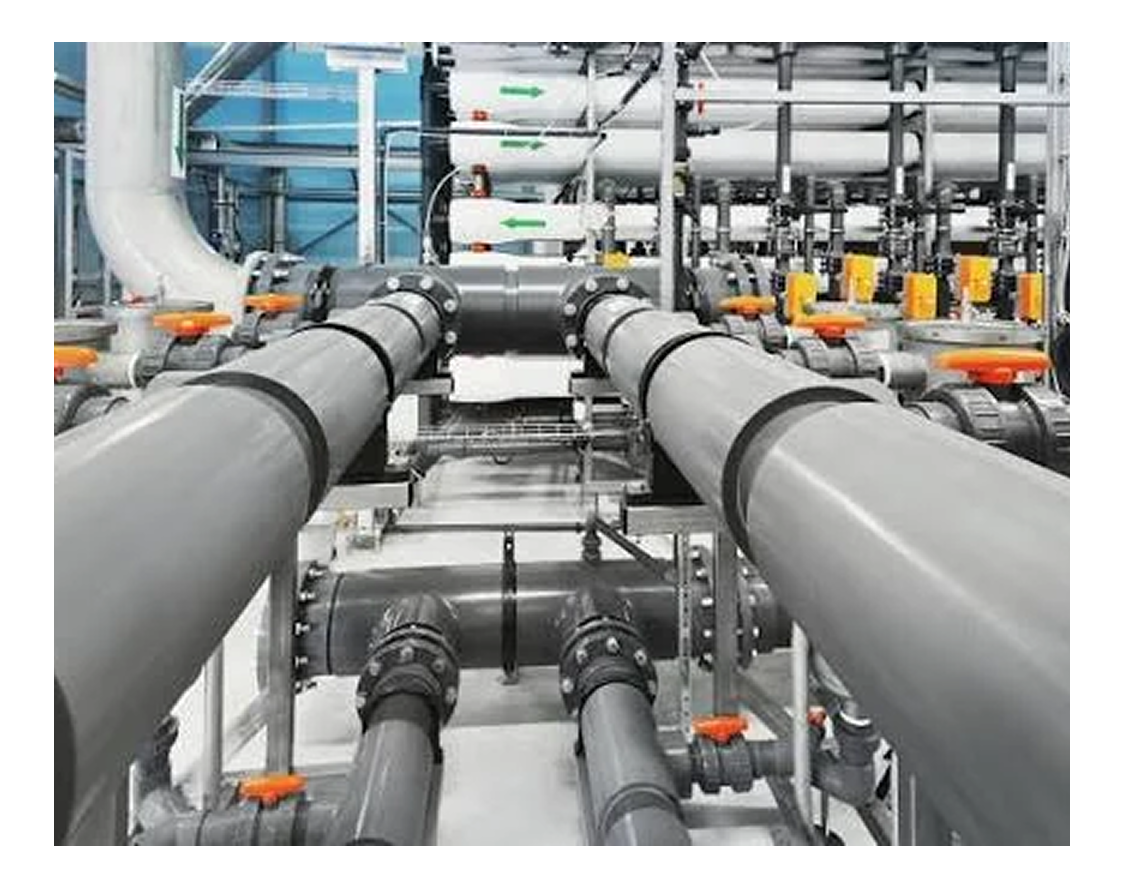

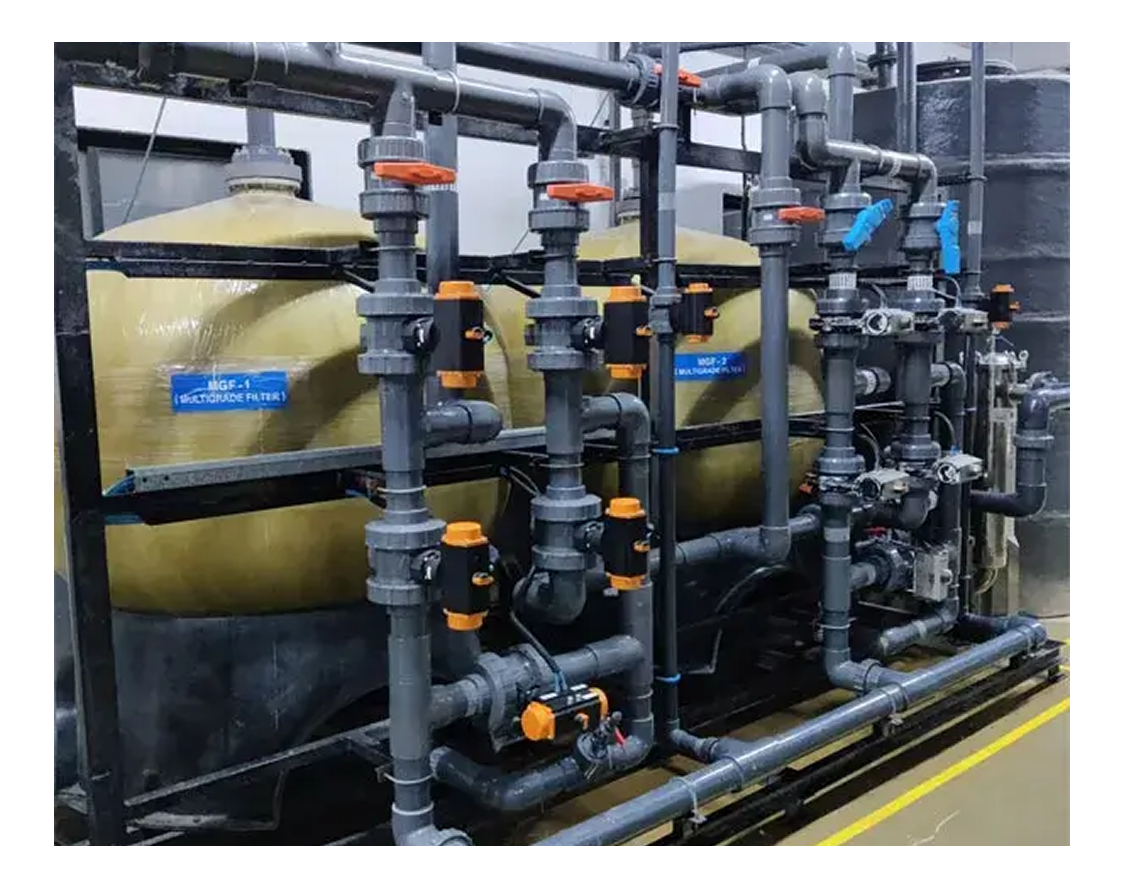

| Brand/make | SEKISUI SPECIALTY CHEMICALS CO., LTD. (JAPAN). |
|---|---|
| Material | CPVC (Chlorinated PVC) | Cell Classification: ASTM D-1784. |
| Standard | ANSI / ASTM | Pipe: ASTM F-441 | Fittings: ASTM F-439 / F-437. |
| Schedule | Schedule 80 (Sch80) |
| Size | 1/2" to 16" Diameter |
| Connection Types | Socket (S x S) | Threaded (FT x FT) | Socket x Threaded (S x FT) |
| Pipe Fitting's type | Coupling, 90 Elbow, 45 Elbow, Tee, Male Adapter, Female Adapter, Cap, Union, Flange (One-piece, Van Stone, Blind), Reducers, Bushings. |
| NSF Certification | NSF International Standard 14 & 61 (Excluding CPVC Pipe 20A). |
| Temperature Rating | Higher than PVC - suitable for hot chemical services up to ~93 deg C |
| Color | Light Gray. |
| UV Resistant Option | ESLON UVS-VP - Outer layer highly weatherized plastic + inner PVC; no maintenance coating needed. |
| Application | High-temperature chemical process, Pulp & Paper, Electroplating, Semiconductor, Boiler Feed Water, Aquarium. |
| Brand/make | SEKISUI SPECIALTY CHEMICALS CO., LTD. (JAPAN) |
|---|---|
| MOC | CPVC | PVC (UPVC) | PP (Polypropylene) | PVDF (Polyvinylidene Fluoride). |
| Standards | ANSI | DIN | ASTM | JIS | ISO |

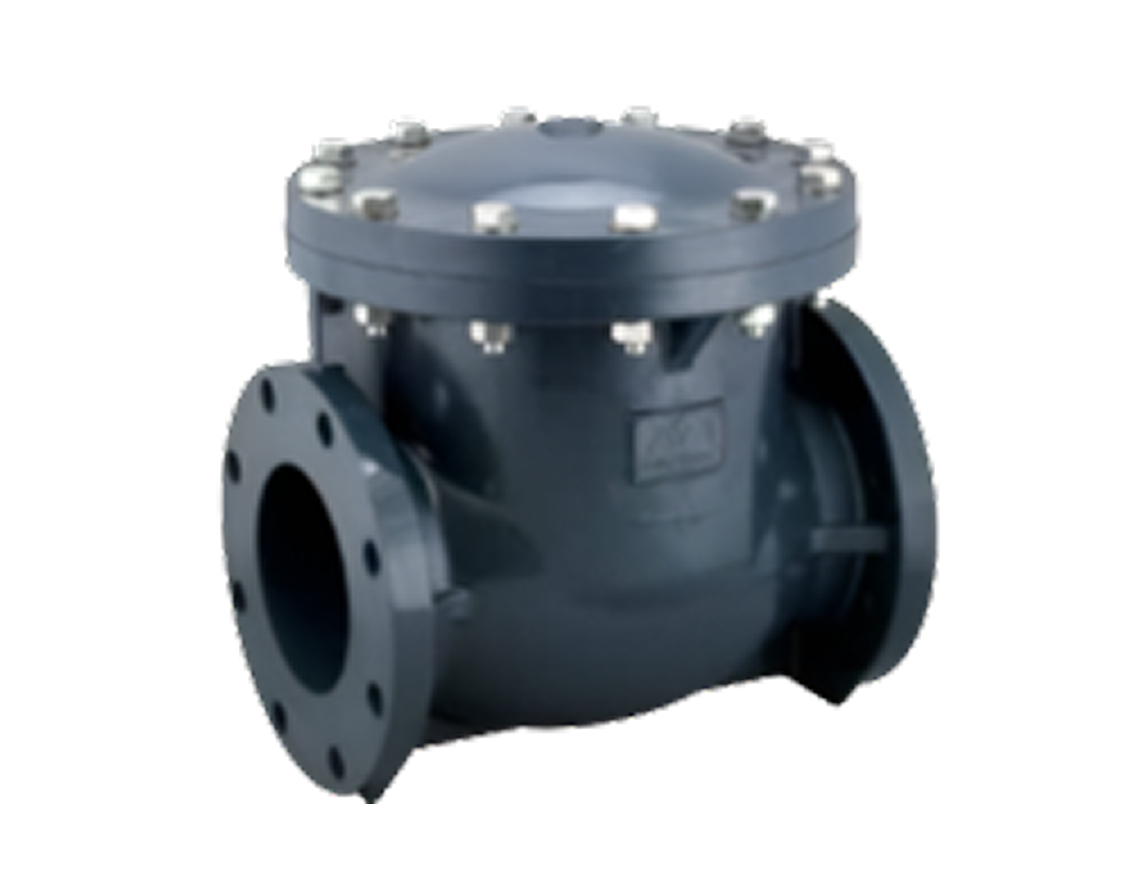

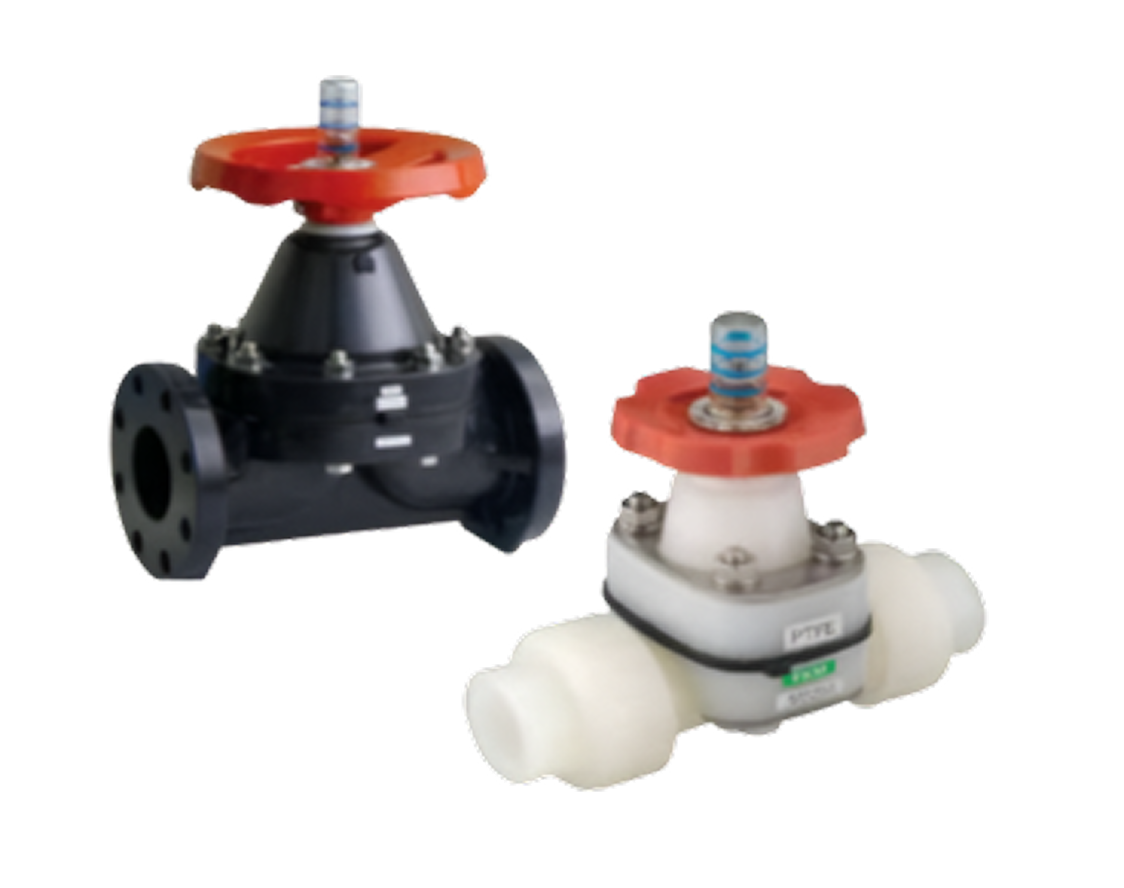

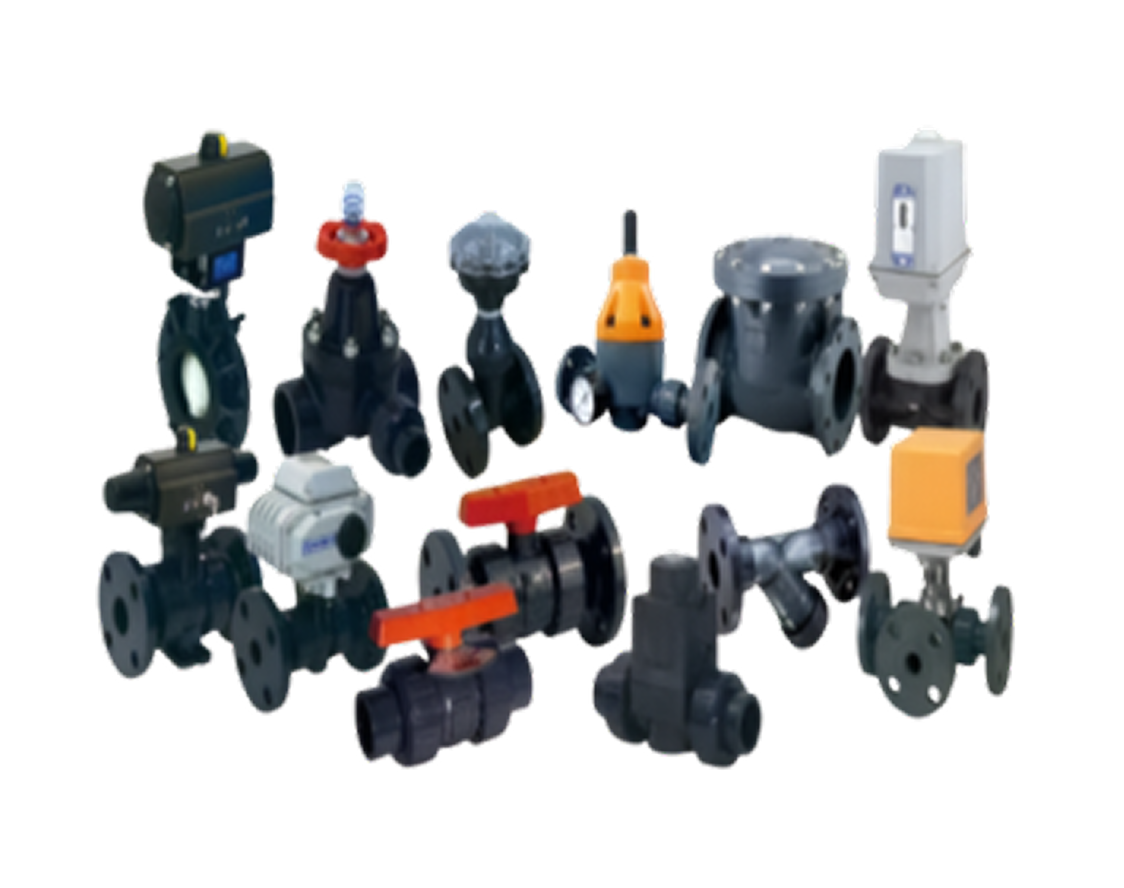

| Valve Types | Diaphragm Valve | Ball Valve | Ball Valve Type M | Butterfly Valve (Lever & Gear) Check Valve (Ball, True Union Ball, Swing) | Foot Valve | Strainer. |
| Seat / O-ring Material | EPDM | FKM (Viton) | PTFE |
| Connection Types | Flange | Socket (True Union) | Thread (NPT, Rp) | Butt Spigot | Socket Welding |
| Size - Diaphragm | 1/2" to 10" (Flange) | 1/2" to 2" (Socket / Thread) |
| Size - Ball Valve | 1/2" to 4" |
| Size - Butterfly | 1-1/2" to 8" (Lever) | 1-1/2" to 14" (Gear) |
| Size - Check Valve | 1/2" to 8" (Swing) | 1/2" to 4" (Ball / True Union Ball) |
| Size - Foot Valve | 1/2" to 4" |
| Application | Chemical Plants, Paper Mills, Power Generation, Food & Beverage, Waste Water Treatment, Aquarium, Steel Plants, Semiconductor, Solar Panels, Desalination. |
