"As a leading HDPE pipe supplier in Vadodara, Gujarat, we specialize in providing high-quality HDPE pipes and fittings to meet the diverse needs of industries across the region. Our products are designed for durability and performance, offering reliable solutions for water supply, gas transportation, and more. We also offer all types of HDPE fittings, ensuring a perfect fit for every application. Whether you're in need of Reliance HDPE pipes or HDPE fittings, we are your trusted local supplier."
are manufactured at state of the art ISO9001 certified manufacturing facility at Hazira, Gujarat in accordance to National and International Standards as listed below:
| IS 4984 : 1995 | HDPE Pipes 20mm to 400 mm OD |
| IS 14333 : 1996 | HDPE Pipes 20 mm to 400 mm OD |
| ISO 4427 : 1996 | HDPE Pipes 32 mm to 630 mm OD |
| DIN : 8074/75 | HDPE Pipes 20 mm to 630 mm OD |
| DIN : 8077/78 | PP Pipes 20 mm to 400 mm OD |
"RELIANCE" High Density Polyethylene (HDPE) Pipes are presently produced in raw material grades of PE-63, PE-80 and PE-100.
"RELIANCE" HDPE Pipes are normally available in BLACK Color and also pipes can be supplied in colours depending upon customer's requirement. HDPE Pipes from 20 mm to 125 mm can be supplied in coil form. Standard Lengths of Pipes are 5/6 Meters of Customized Length
Pipes manufactured from PE 80 or PE 100 grade of raw material offer techno-commercial advantages and are finding widespread usage in the country.
| Classification of Materials | |||
|---|---|---|---|
| Sr. No. | Material Classification(Grade) | MRS of PE Resin at 20°C for 50 year life Mpa | Design Stress at 20°C Mpa |
| 01 | PE 63 | 6.3 | 5 |
| 02 | PE 80 | 8.0 | 6.3 |
| 03 | PE 100 | 10.0 | 8 |

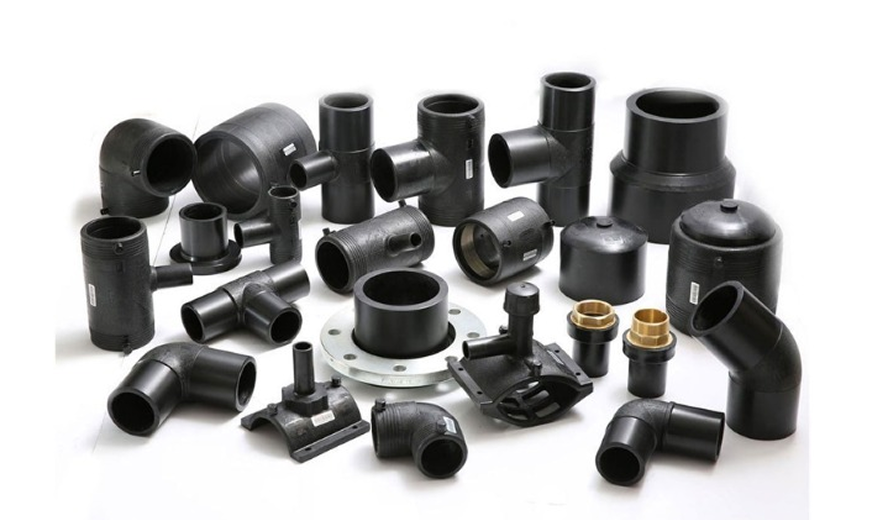

A wide variety of PE pipe fittings are available for different applications and their selection should be specific to the type of jointing system adopted. An incorrect fitting selection has adverse effect on the installation while a careful and accurate selection is of great help in faster project execution besides cost optimization and efficient system operation.
Butt fittings are generally adopted when the jointing is by butt fusion technique. These fittings can be either fabricated from pipes or injection Moulded or sometimes machined from preforms produced. The range includes tees, bends, reducers, end caps, collars / Pipe ends, etc. Characteristics of butt fusion fittings are:
These are often referred to as Mechanical Fittings. Compression fittings are available from 16 mm to 110 mm in 10 kg and 16 kg working pressure class size specific. Compression fittings are very popular for water supply distribution network. The advantages of compression fittings are:
